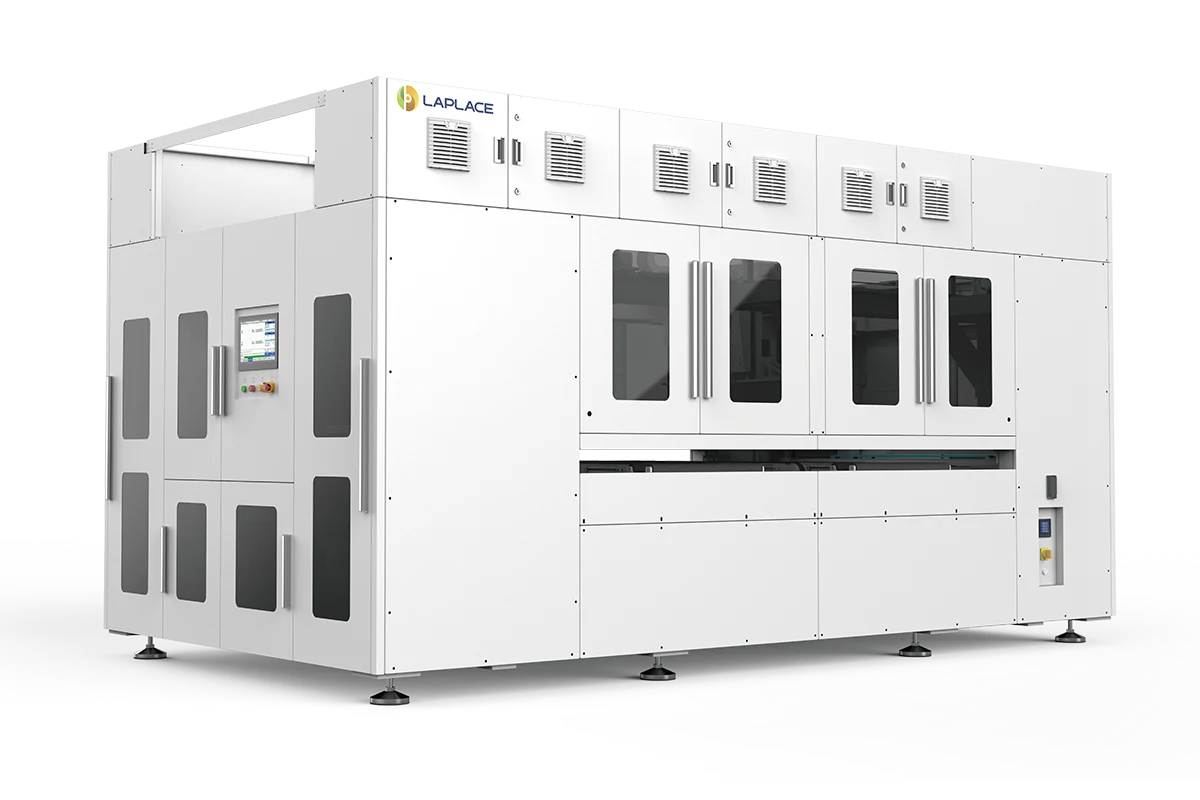

Busbar Laminating Machine

Busbar Laminating Machine

Busbar Laminating Machine

Datasheet
Description

1. Efficiency Gain: Combined with reflective film, it covers busbars at the head, tail, and middle positions, achieving a module power increase of 1-1.5W. It can be upgraded with a head/tail busbar folding function to achieve a power boost of 3-5W.
2. Aesthetic/All-Black Modules: Paired with black film tape, it can replace black busbars to enable the production of “All-Black” modules.

Parameter
  • Product DimensionsL5050 mm × W2550 mm × H2400 mm
  • ApplicationNon-shingled (standard) modules
  • Applicable Backsheet SizeL1640-2550mm, W980-1450mm
  • Wafer Size18X-230mm Full-cut / Half-cut
  • Cycle Time ≤ 12s
  • Uptime 99.5%
  • Production Yield 99.8%
  • Segmented / Full Strip Supports both full strip and segmented application
  • Busbar Folding Supports upgrade/modification
  • Camera Inspection Incoming film appearance & accuracy inspection; Busbar position inspection; Post-taping final inspection
  • Taping Accuracy ±0.5mm
  • Film Width Customizable
  • Film Roll Length Max 10,000m
  • Non-stop Material Change Supported
  • Average Power 6KW
  • Rated Power 15KW
